N-Glycan Standards for Glycoanalysis

Explore N-glycan standards for glycoanalysis and glycobiology research. Review structures and specifications, select available packs, or request a tailored quote.

N-glycan standards

The right structure.
Down to the linkage.

Explore selected structures from our N-glycan standard projects. Closely related glycans can differ in antenna placement or terminal linkages. Share your exact target with our team.

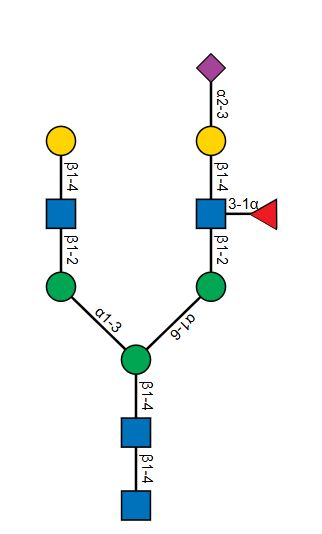

Biantennary N-glycan with an alpha 2-3 sialylated, alpha 1-3 fucosylated antenna on the alpha 1-6 mannose arm

Sialylated, fucosylated N-glycan

Antenna placement defines the target

Select drawing to enlarge ↗

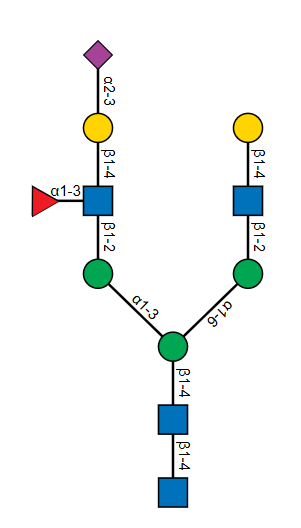

Biantennary N-glycan with an alpha 2-3 sialylated, alpha 1-3 fucosylated antenna on the alpha 1-3 mannose arm

Alternative antenna arrangement

Compare the branch and linkage pattern

Select drawing to enlarge ↗

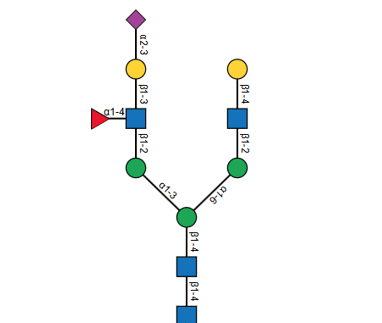

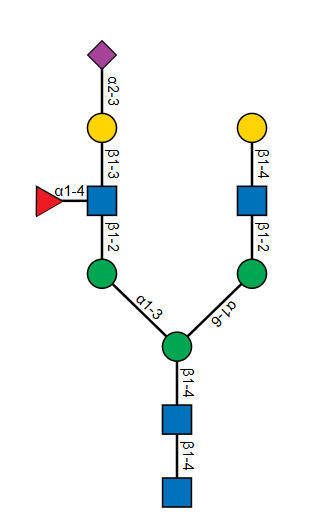

Biantennary N-glycan with an alpha 2-3 sialylated beta 1-3 galactose and alpha 1-4 fucose terminal motif

Alternative terminal linkages

Galactose and fucose linkages matter

Select drawing to enlarge ↗

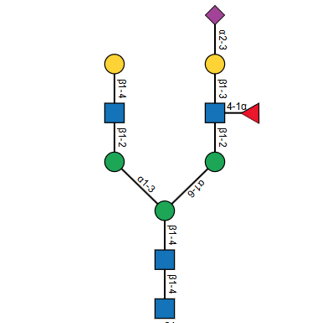

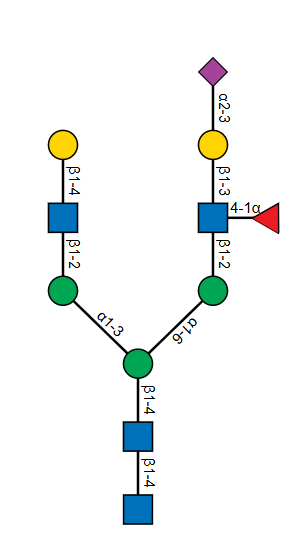

Related biantennary N-glycan with a sialylated beta 1-3 galactose and alpha 1-4 fucose motif on the other antenna

Branch-specific counterpart

Specify the complete structure

Select drawing to enlarge ↗

Analytical examples

Structure with supporting characterization

Selected proton NMR spectra from the two antenna arrangements shown above. These are project examples, rather than certificates for every product or batch. Ask our team for the documentation and specifications available for your requested standard.

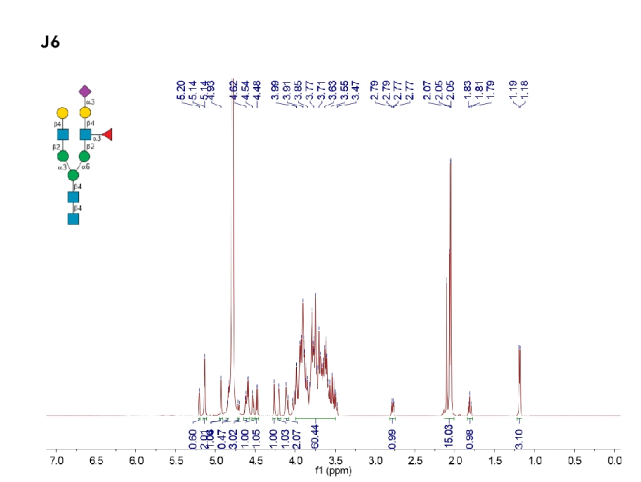

Proton NMR · first antenna arrangement, supplied project characterization spectrum
Proton NMR · first antenna arrangement

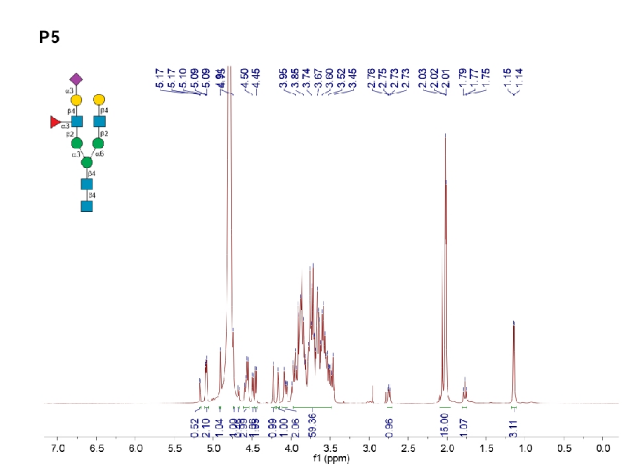

Proton NMR · alternative antenna arrangement, supplied project characterization spectrum
Proton NMR · alternative antenna arrangement

Selected project structures do not indicate current stock. Confirm the exact structure, chemical form, quantity and analytical package with our team. Research Use Only.

Consult our expert

Structure notation reference: Symbol Nomenclature for Glycans (SNFG). Drawings and spectra shown here are supplied GlycoDepot project materials.

Selected projects

Custom glycan synthesis case studies

From gram-scale enzymatic synthesis to research standards with analytical documentation, each project starts with a defined target and an agreed scope.

Case 01

N-glycan synthesis at gram scale

Bottom-up assembly through a fully enzymatic route

Project quantities
1–10 g
Specified purity
≥95%
Stereochemical control
Enzymatic

The brief

The project called for gram-scale Asn-linked N-glycans across multiple glycosylation patterns, with defined structures and a purity specification of at least 95%.

Our approach

A bottom-up, fully enzymatic synthesis strategy used the selectivity of glycosyltransferases to control glycosidic bond formation and achieve high stereochemical control during assembly.

Project scope

The project scope included both 1 g and 10 g N-glycan requirements. Each target was specified separately to align structure, quantity, and purity with the research program.

Case 02

Custom N-glycan standards

Analytical characterization with confidential structural details

Characterization data
NMR
Mass-spectrometric data
MS
Research standards
Custom

The brief

The requirement was a set of custom N-glycan standards with project-specific structural requirements and supporting analytical documentation for research use.

Our approach

The analytical package included NMR spectra and mass-spectrometric datasets to support characterization of the prepared standards. The scope and documentation were tailored to the individual targets.

Project scope

Molecular structures and ligand identities are withheld from this public summary. Project-specific structures and analytical requirements can be discussed privately with our team.

Case 03

GD2 ganglioside characterization

Proton NMR · Mass spectrometry · HPLC

A GD2-ceramide project with complementary structural and chromatographic characterization.

Proton NMR spectrum (1/3)

GD2 ganglioside characterization · Proton NMR spectrum

GD2 ganglioside characterization: Proton NMR spectrum

The supplied analytical package includes a proton NMR spectrum, a mass spectrum, and an HPLC chromatogram with its integrated peak table. Review the original panels below and discuss the chemical form, quantity, and batch requirements with our team.

Selected project data. These panels are not a certificate for every product or batch. HPLC peak-area percentages are not an absolute purity measurement.

Case 04

Custom Siglec ligand

Proton NMR · Mass spectrometry · HPLC

A custom ligand project supported by NMR, mass-spectrometric, and chromatographic data.

Supplied partial Siglec-ligand structure (1/4)

Custom Siglec ligand · Supplied partial Siglec-ligand structure

Custom Siglec ligand: Supplied partial Siglec-ligand structure

The analytical panels document the supplied project material. Only the supplied partial molecular drawing is shown. The full ligand identity remains confidential. These data do not establish binding affinity or biological activity, which require separate evaluation.

Selected project data. These panels are not a certificate for every product or batch. HPLC peak-area percentages are not an absolute purity measurement.

Case 05

N-glycan standard panel

Proton NMR · Structure-defined research standards

A panel of related N-glycan standards with individual proton NMR records and glycan structure diagrams.

Proton NMR and structure · N-glycan example 1 (1/4)

N-glycan standard panel · Proton NMR and structure · N-glycan example 1

N-glycan standard panel: Proton NMR and structure · N-glycan example 1

Four supplied N-glycan examples show different terminal motifs and branch arrangements. Each spectrum is paired with its own structure. Select standards by the complete structure and linkage pattern, and confirm the required specifications with our experts.

Selected project data. These panels are not a certificate for every product or batch. HPLC peak-area percentages are not an absolute purity measurement.

Case 06

Oligosaccharide standards

Proton NMR · Defined carbohydrate materials

Selected oligosaccharide reference materials with proton NMR characterization, including a sialyl Lewis X example.

Proton NMR · oligosaccharide example 1 (1/3)

Oligosaccharide standards · Proton NMR · oligosaccharide example 1

Oligosaccharide standards: Proton NMR · oligosaccharide example 1

The supplied records include two oligosaccharide panels and a separate sialyl Lewis X spectrum. NMR is the available method for these examples. Discuss any additional mass-spectrometric or chromatographic documentation needed for your application.

Selected project data. These panels are not a certificate for every product or batch. HPLC peak-area percentages are not an absolute purity measurement.

Project examples are shared anonymously. Quantities and specifications describe these projects; feasibility, purity, and scale are reviewed for each new request. Research Use Only.

Explore N-glycans for analytical method development, glycan profiling, and glycobiology research. Select by the exact structure and product specifications rather than composition alone.

Select packs on each product page. Checkout for priced products; request a quote for bulk or custom requirements.

Showing 12 of 161

N-Glycan-CG-M10000

N-Glycan-CG-M10000

Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C22H38N2O16, Mol. Wt :586.54: G15407YE

Quote on requestIn stock
N-Glycan-CG-M20100

N-Glycan-CG-M20100

Man(a1-6)Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C28H48N2O21, Mol. Wt :748.68: G22573RC

Quote on requestIn stock
N-Glycan-CG-M31100

N-Glycan-CG-M31100

Man(a1-3)[Man(a1-6)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C34H58N2O26, Mol. Wt :910.82: G22768VO

Quote on requestIn stock
N-Glycan-CG-M32000

N-Glycan-CG-M32000

Man(a1-2)Man(a1-3)Man(b1-4)GlcNAc(b1-4)b-GlcNAc, Formula : C34H58N2O26, Mol. Wt :910.82: G42227JK

Quote on requestIn stock
N-Glycan-CG-M41101

N-Glycan-CG-M41101

Man(a1-6)Man(a1-6)[Man(a1-3)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C40H68N2)31, Mol. Wt :1072.96: G34442SS

Quote on requestIn stock
N-Glycan-CG-M43000

N-Glycan-CG-M43000

Man(a1-2)Man(a1-2)Man(a1-3)Man(b1-4)GlcNAc(b1-4)b-GlcNAc, Formula : C40H68N2)31, Mol. Wt :1072.96: G01760ZU

Quote on requestIn stock
N-Glycan-CG-M51111

N-Glycan-CG-M51111

Man(a1-3)[Man(a1-6)]Man(a1-6)[Man(a1-3)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C46H78N2O36, Mol. Wt :1235.1: G55220VL

Quote on requestIn stock
N-Glycan-CG-M53100

N-Glycan-CG-M53100

Man(a1-2)Man(a1-2)Man(a1-3)[Man(a1-6)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C46H78N2O36, Mol. Wt :1235.1: G46836GH

Quote on requestIn stock
N-Glycan-CG-M61121

N-Glycan-CG-M61121

Man(a1-2)Man(a1-3)[Man(a1-6)]Man(a1-6)[Man(a1-3)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C52H88N2O41, Mol. Wt :1397.24: G34499SX

Quote on requestIn stock
N-Glycan-CG-M63100

N-Glycan-CG-M63100

Man(a1-2)Man(a1-2)Man(a1-3)[Man(a1-3)Man(a1-6)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C52H88N2O41, Mol. Wt :1397.24: G83582BK

Quote on requestIn stock
N-Glycan-CG-M72112

N-Glycan-CG-M72112

Man(a1-2)Man(a1-6)[Man(a1-3)]Man(a1-6)[Man(a1-2)Man(a1-3)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C58H98N2O46, Mol. Wt :1559.38: G83161QT

Quote on requestIn stock
N-Glycan-CG-M83112

N-Glycan-CG-M83112

Man(a1-2)Man(a1-6)[Man(a1-3)]Man(a1-6)[Man(a1-2)Man(a1-2)Man(a1-3)]Man(b1-4)GlcNAc(b1-4)GlcNAc, Formula : C64H108N2O51, Mol. Wt :1721.53: G40702WU

Quote on requestIn stock

Match the standard to your method

  • Review the glycan structure, branching, linkages, and reducing-end form on the individual product page.
  • Specify any labeling or derivatization requirements, intended analytical method, and documentation needed when requesting a quote.
  • Order priced packs online where available. Request pricing for larger quantities, reference panels, or structures outside the catalog.

For Research Use Only. Ask our team about specifications and availability for your application.

Questions before you order

How do I choose an N-glycan standard?

Match the exact structure, chemical form, and labeling status to your method. Share your target structure and analytical application with our team if you need help identifying a suitable product.

Can I request several standards in one quote?

Yes. Add the products to your quote list and submit the required quantities together. Include your intended method and any documentation requirements in the notes.

What if I cannot find the required glycan?

Send a custom glycan synthesis request with the target sequence or structure, required amount, and purity. Feasibility, pricing, and delivery expectations are reviewed for each project.
